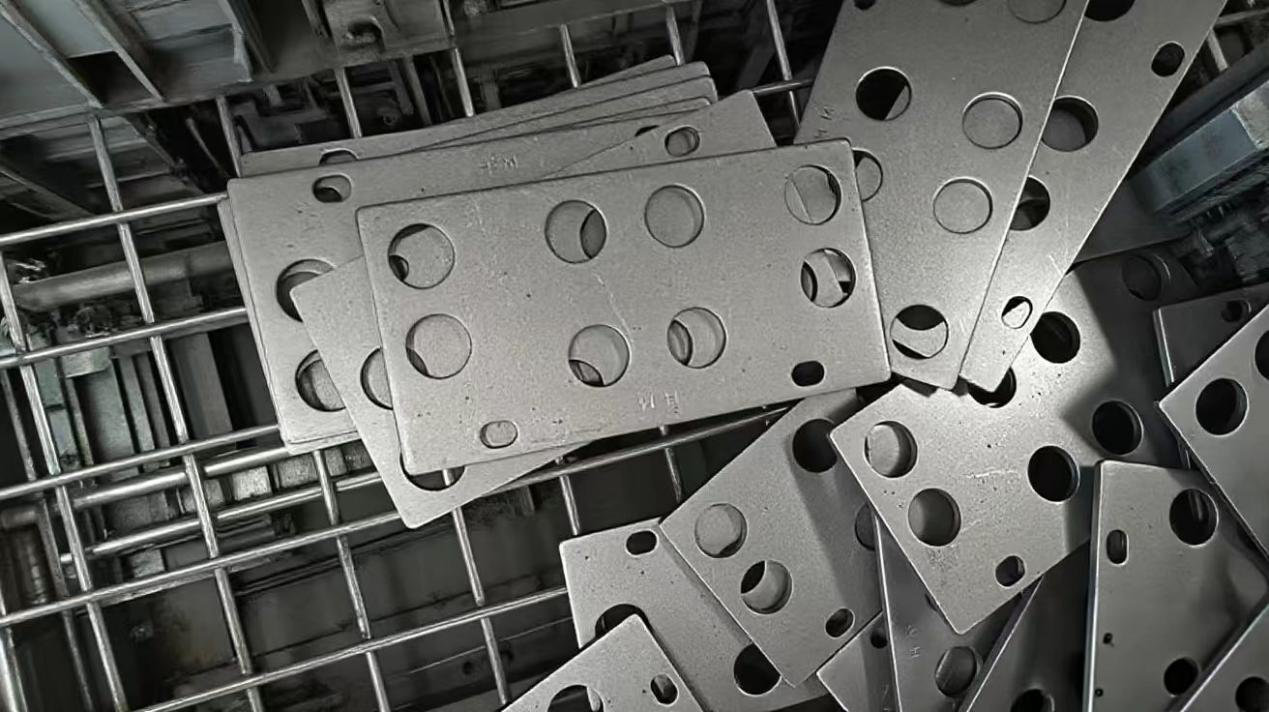

Industrial-Grade Multi-Hole Connection Plate
Product Positioning: Core Component for Modular Industrial System Connections
As a modular connection core component for industrial systems, the Steel Backing Plate 1562 focuses on “precision adaptation × high-strength load bearing”, providing efficient assembly and stable operation connection solutions for automated production lines and mechanical equipment.
Core Features: Industrial-Grade Excellence
1. Materials & Processes
- Base Material: High-strength carbon steel (standard) / stainless steel (customizable) with tensile strength ≥500MPa, resisting high-frequency load impacts.
- Processing: CNC laser cutting + die punching, achieving hole position tolerance ≤±0.1mm and edge roughness Ra≤1.6μm, smooth hole walls without burrs, ensuring “zero-gap” assembly.
- Protection: Standard galvanizing (salt spray corrosion resistance ≥360h) with optional blackening (wear-resistant) or electrophoretic (weather-resistant) treatments, adapting to complex working conditions.
2. Structural Design
- Multi-hole Matrix: Standardized hole layout compatible with M6~M16 fasteners, supporting “positioning + connection” integration, flexibly adapting to multi-scenario assembly for robotic arms, brackets, fixtures and more.
Application Scenarios: Versatile Industrial Connection Solutions
- Automated Production Lines: Serves as modular connection components for fixtures and jigs, accelerating production line construction and iteration.
- Construction Machinery: Compatible with pipeline brackets and structural reinforcement modules for excavators and loaders, enhancing equipment reliability.
- Renewable Energy Sector: Bracket connection plates for solar/wind power equipment, ensuring long-term stability under outdoor working conditions.
Industrial Advantages: Efficiency and Cost Optimization
- Batch Consistency: Smart production lines achieve “same precision for ten thousand pieces”, reducing assembly and debugging time by 50% and optimizing bulk procurement costs by 25%.
- Customization Response: Supports customization of hole positions, dimensions, and materials, delivering solutions within 72 hours to quickly match non-standard requirements.
Product Core Value
The Steel Backing Plate 1562 embodies “precision, durability, flexibility” as its core values, thoroughly solving industrial connection challenges of “difficult adaptation, high costs, short service life”, helping customers build more efficient equipment systems.
Technical Specifications Summary
| Specification | Value |
|---|---|
| Model | 1562 |
| Material | High-strength Carbon Steel (Standard) / Stainless Steel (Custom) |
| Tensile Strength | ≥500MPa |
| Hole Position Tolerance | ≤±0.1mm |
| Edge Roughness | Ra≤1.6μm |
| Surface Treatment | Galvanizing / Blackening / Electrophoretic Coating |
| Salt Spray Corrosion Test | ≥360h |
| Fastener Compatibility | M6~M16 |
| Custom Solution Time | 72 hours |
| Assembly Time Reduction | 50% |
| Cost Optimization | 25% bulk procurement savings |
Key Performance Features
- Universal Compatibility: M6~M16 fastener compatibility for maximum versatility
- Precision Manufacturing: ±0.1mm hole tolerance for perfect component alignment
- Flexible Material Options: Carbon steel standard, stainless steel for specialized applications
- Enhanced Durability: Multiple surface treatment options for extended service life
- Modular Design: Standardized hole patterns for system-wide compatibility
- Rapid Customization: 72-hour response for non-standard requirements
Manufacturing Excellence
- Smart Production: Automated systems ensuring consistent quality across high volumes
- Quality Surface Finish: Ra≤1.6μm edge roughness for professional appearance
- Cost Efficiency: 25% reduction in bulk procurement costs through optimized manufacturing
- Flexible Solutions: Adaptable to both standard and custom industrial applications
- Multi-industry Applications: From automation to renewable energy sectors
